Blue Sea 5025 6-position Fuse Block

Blue Sea 5025 6-position Fuse Block

Regular price $49.33 CAD
Regular price Sale price $49.33 CAD
Sale Sold out

The Blue Sea fuse block series is the industry standard for both marine and vehicle-related applications.   They are available in various configurations.

OEM Version; no labels or packaging included.  Not for retail use.
Bulk Discounts available - contact us for pricing based on desired quantity.


  • 6 position fuse block with snap-on cover
  • uses standard ATC fuses
  • includes ground bus circuit
  • Meets ABYC/US Coast Guard standards for insulation
  • Maximum amperage per circuit;  30A
  • Maximum combined amperage per fuse block;  100A
  • Main bus stud sizes;  #10-32
  • Screw types;  #8-32 with captive star lock washer
  • Includes cover that snaps on/off fuse block (no tools required).  Cover holds 2 spare fuses (not included)
  • High quality Tin plated copper buses and fuse clips (cheaper fuse blocks use tin or steel only, no copper).
  • Also available in 4, 8, 12, and split-bus versions


  • Fuses not included

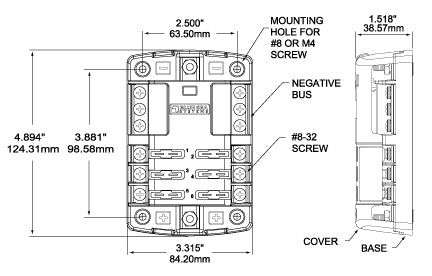

  • Labels shown on manufacturer's website and image below are not included
  • Do not use thread-locker compounds on fuse blocks as they inhibit current transmission.  Torque screws and nuts to factory specifications.

Manufacturer's web page is here .
