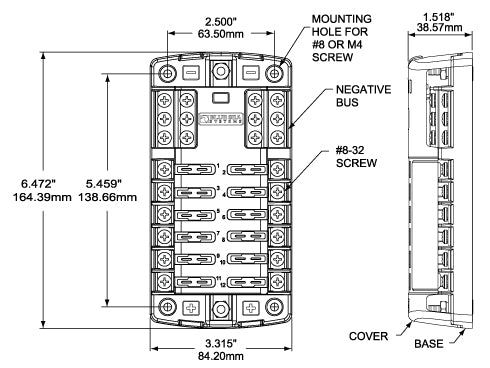

Blue Sea 5026 12-position Fuse Block
Blue Sea 5026 12-position Fuse Block
SKU:5026
Regular price
$65.94 CAD
Regular price
Sale price
$65.94 CAD
Unit price
/
per
19 in stock
Couldn't load pickup availability
The Blue Sea fuse block series is the industry standard for both marine and vehicle-related applications. They are available in various configurations.
OEM Version; no labels or packaging included. Not for retail use.
Bulk Discounts available - contact us for pricing based on desired quantity.
Features
- 12 position fuse block with snap-on cover
- uses standard ATC fuses
- includes ground bus circuit
- Meets ABYC/US Coast Guard standards for insulation
- Maximum amperage per circuit; 30A
- Maximum combined amperage per fuse block; 100A
- Main bus stud sizes; #10-32
- Screw types; #8-32 with captive star lock washer
- Includes cover that snaps on/off fuse block (no tools required). Cover holds 2 spare fuses (not included)
- High quality Tin plated copper buses and fuse clips (cheaper fuse blocks use tin or steel only, no copper).
- Also available in 4, 6, 8, and split-bus versions
Notes
- Fuses not included
- Labels shown on manufacturer's website and image below are not included
- Do not use thread-locker compounds on fuse blocks as they inhibit current transmission. Torque screws and nuts to factory specifications.
Manufacturer's web page is here .
