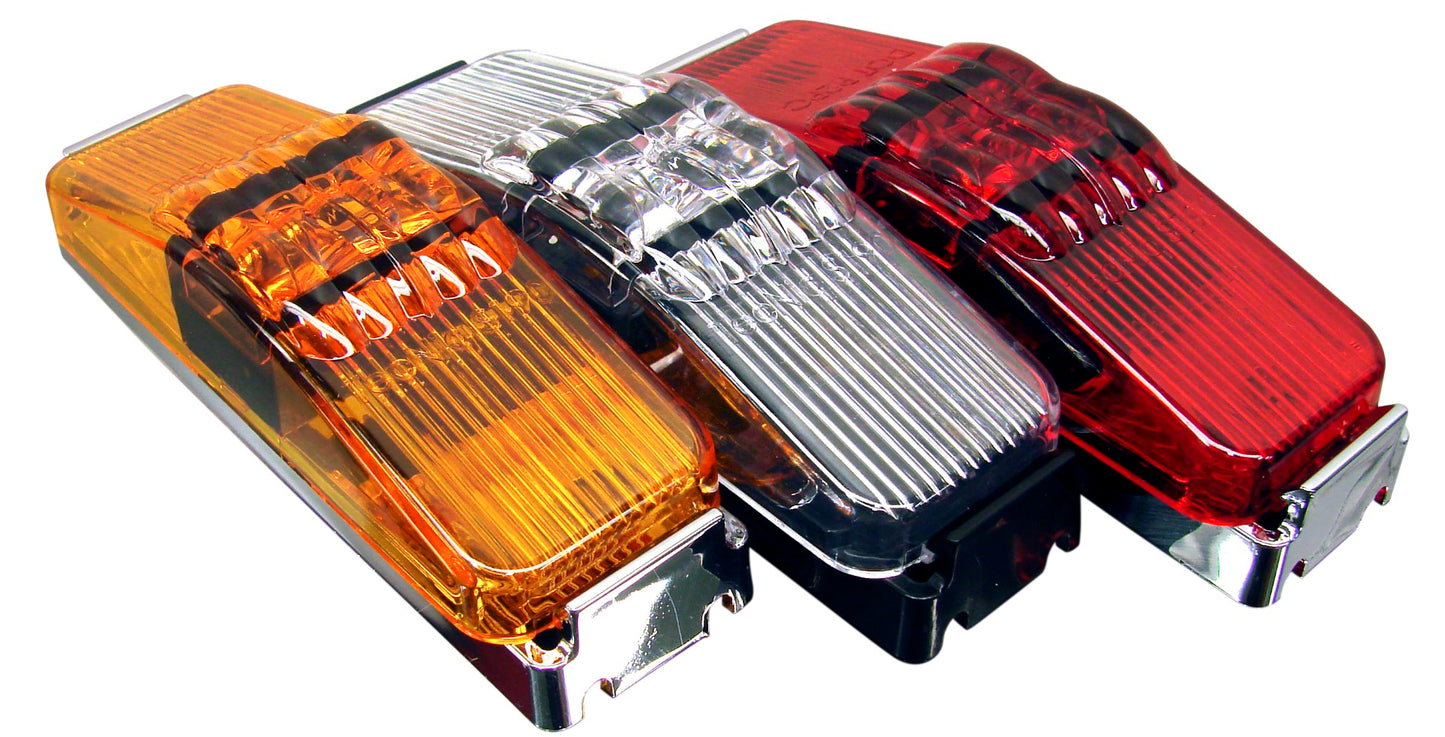

Tecniq S19 1" x 4" Marker Light

Tecniq's S19 light is a rectangular (1" x 4") side marker light.

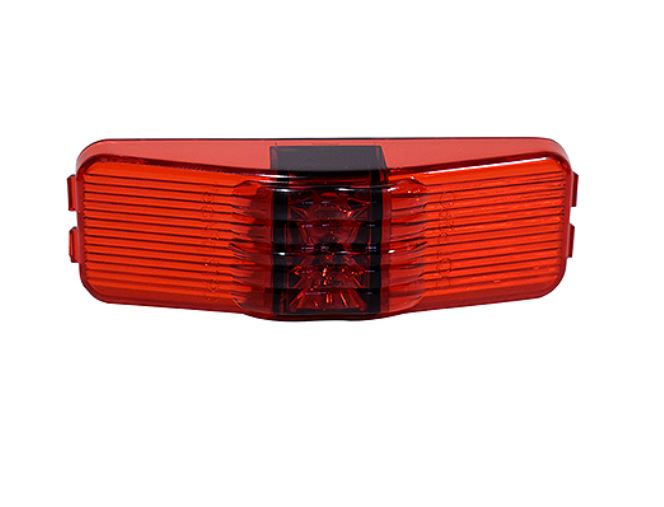

• Available in Amber or Red LEDs
• Available in Clear or Coloured lenses (emits coloured light in both cases)
• IP68 rated
• DOT Rated
• Self-grounding base is required for mounting (sold separately - see below)

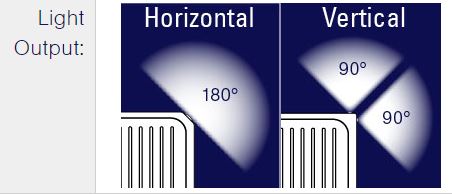

• PC Rated (90 degree light output angle), which also exceeds P2 ratings
• 9-14 volt DC
• Current draw;  0.04A (amber),   0.07A (red)
• Surface mount, 3" hole spacing
• Lifetime manufacturer warranty

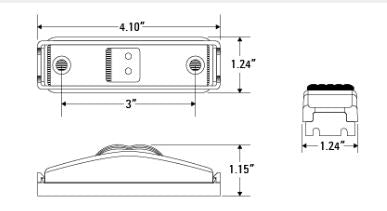

Dimensioned drawing (including mounting base) is HERE (pdf)
